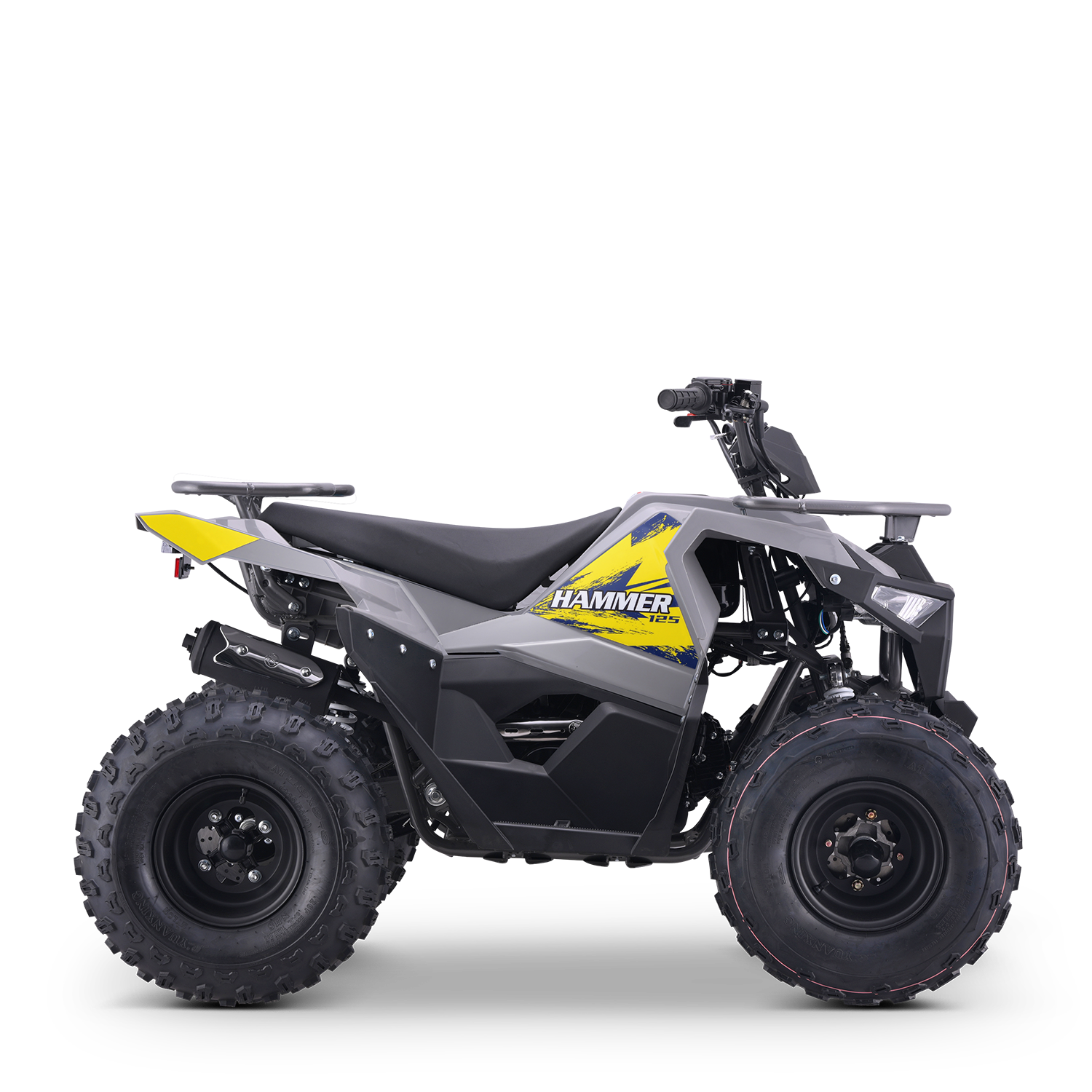

HAMMER 125

Their First Ride. Built Right.

The HAMMER 125 is engineered for young riders stepping into ATVs — a reliable 125cc quad with proportional ergonomics, responsive handling, and safety-first design.

Inquire Now Become a Dealer

Full Specifications

Engine

Engine Type

1-Cylinder, 4-Stroke, Air-Cooling

Displacement

123.67 cm³

Bore / Stroke

54 mm × 54 mm

Compression Ratio

9.0:1

Max Power

8.4 HP @ 7500 r/min

Max Torque

8.8 NM @ 5000 r/min

Fuel Supply

Carburetor

Start

Electric Start

Transmission

Chain Drive

Chassis

Front Suspension

Dual A-Arms Independent Suspension

Rear Suspension

Swing Arm

Front Brake

Hydraulic Disc Brake

Rear Brake

Hydraulic Disc Brake

Front Tires

18×7-8

Rear Tires

18×9-8

Dimensions / Capacity

Dimensions (L×W×H)

1430×965×1950 mm

Wheelbase

970 mm

Ground Clearance

180 mm

Max Speed

60 km/h

Net Weight

109 kg

Fuel Tank

7 L

Max Load

82 kg
